Textile RFID Laundry Tag NXP UCODE® 9xe
$2.00 – $473.00Price range: $2.00 through $473.00
Made from high-strength, abrasion-resistant, flexible, moisture-resistant, and easy-care polyester, this slim NXP UCODE® 9xe RFID textile laundry tag is designed to endure and surpass 200 industrial wash cycles, guaranteeing remarkable durability throughout the washing process. Equipped with the cutting-edge RFID chip, NXP UCODE® 9xe, this laundry tag delivers outstanding performance and an extensive read range, even in the most challenging laundry environments.
Featuring an unique identifier(TID/UID), RFID readers can efficiently batch-scan these textile laundry tags to automatically monitor usage status and wash counts in various applications such as industrial laundry, linen rental, uniform management, hotel linen management, healthcare linen management, military laundry, and more.
Description
Features
Frequency Band
UHF 860-960 MHz
Chip Type
NXP UCODE® 9xe
International Standard
ISO/IEC 18000-6C, EPCglobal Gen2v2
EPC Memory
128 bits
TID Memory
96 bits
Washing Cycles
200 washing cycles or 3 years
Specifications
Physical Specifications
Material: Textile
Tag Dimension: 70×15 mm
Net Weight: 0.4 g
Surface Color: White
Customization: Support logo printing, encoding, and tailored design
Mounting Method: Sewn into the hem, or sewn-in pouch (do not sew onto the metal wire or chip module during sewing)
Technical Parameters
Operating Frequency: 860~960 MHz
Communication Protocols: ISO/IEC 18000-6C, EPCglobal Gen2v2
Read Distance:
Fixed Reader (2W ERP): US: > 14m; EU: > 14m
Handheld Reader: US: > 13.5m; EU: > 9.5m
Washing Information
Washing Temperature: 90°C (194°F) / 15 minutes, 200 cycles
Pre-Drying in Tumbler: 80°C (356°F) / 30 minutes
Ironing: 185°C (365°F) / 10 seconds
Sterilization Process: 135°C (275°F) / 20 minutes
Water Extractor Press: 60 bars
Suitable Washing Methods: Washing and drying
Chemical Resistance: Conventional detergents, fabric softeners, bleaching agents (oxygen / chlorine), and alkalis
Washing Cycles: 200 washing cycles or 3 years(whichever reaches first)
Chip Characteristics
Chip Manufacturer: NXP®
Chip Type: UCODE® 9xe
Unique Serial Number: 48 bits
EPC Memory: 128 bits
TID Memory: 96 bits
Kill Password: 32 bits
Read Sensitivity: -24 dBm
Write Endurance: 100,000 cycles
Data Retention Time: 20 years
Write Sensitivity: -22 dBm
Encoding Speed: 16 bits in 0.6ms
Self Adjust: Support
Drop-in replacement to UCODE 9: Support
Memory Safeguard: Support
Block Write: 32 bits
Multi-Tags Reading: Support
Read/Write: Support
Environmental Spec
Operating Environment: -20°C ~ 85°C (-4°F ~ 180°F), 8% ~ 95% RH
Storage Environment: 18°C ~ 28°C (64.4°F ~ 82.4°F), 40% ~ 60% RH
Applications: Industrial laundry, linen rental, uniform management, hotel linen management, healthcare linen management, military laundry
Download & Support AZT-U9XE-TXT-7015
Reading Range
Tag Power

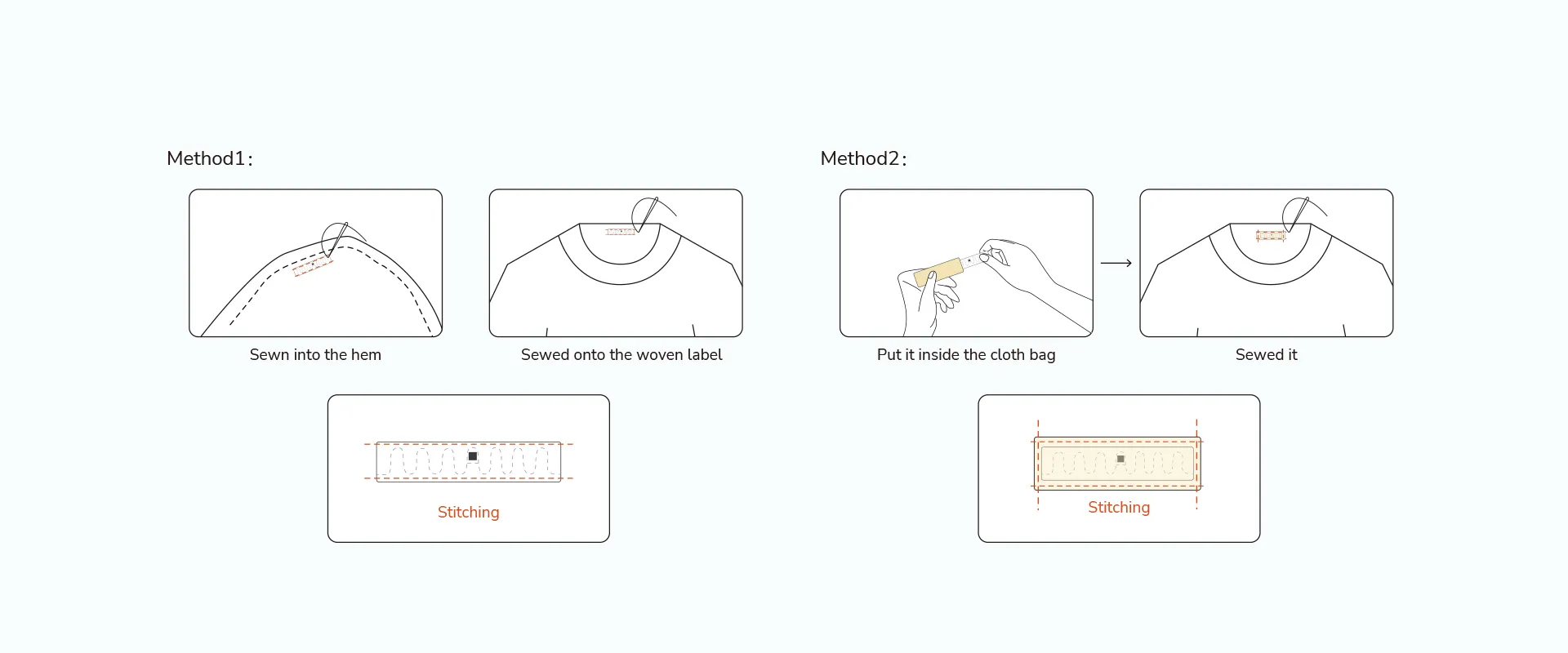

Mounting Method
Do not sew onto the metal wire or chip module during sewing.
