RFID Reader Power Explained: How Power and Antenna Gain Affect Read Range

, , 0

RFID reader power is one of the most important factors affecting RFID system performance, yet it is also one of the most misunderstood specifications. Many users see handheld readers labeled as 30 dBm or 33 dBm and fixed RFID antennas labeled as 9 dBi or 12 dBi, then assume these numbers can be compared directly. In reality, RFID reader power and antenna gain measure different aspects of an RFID system. Understanding how they work together is essential for maximizing read range, improving accuracy, and ensuring regulatory compliance.

1. What Is RFID Reader Power

RFID reader power refers to the amount of radio frequency (RF) energy transmitted by an RFID reader. It is typically expressed in dBm, a logarithmic unit used to measure RF power levels.

Wall-mounted compact RFID access control reader powered by regulated RFID reader power supply.

Common RFID reader power levels include:

  • 27 dBm ≈ 0.5 W
  • 30 dBm ≈ 1 W
  • 33 dBm ≈ 2 W
  • 36 dBm ≈ 4 W

Many commercial UHF RFID readers support output power settings ranging from 10 dBm to 33 dBm, allowing users to adjust performance according to application requirements.

A higher RFID reader power setting generally increases the energy available to activate passive RFID tags. As a result, read distance may increase, especially when combined with suitable antennas and tag designs. However, higher power does not automatically guarantee better performance.

2. Why dBm and dBi Are Not the Same

Fixed RFID gateway transceiver and handheld mobile scanner demonstrating variable RFID reader power output.

One of the most common misconceptions in RFID deployments is comparing RFID reader power directly with antenna gain.

The dBm value shown on a reader represents the actual RF output power generated by the reader. The dBi value shown on an antenna represents antenna gain, which describes how effectively the antenna focuses RF energy in a particular direction.

An antenna does not generate additional power. Instead, it redistributes the RF energy supplied by the reader.

For example:

  • A handheld RFID reader may advertise 30 dBm or 33 dBm output power.
  • A fixed RFID antenna may advertise 9 dBi or 12 dBi gain.

These numbers describe different system components and cannot be directly compared.

3. Understanding the Relationship Between RFID Reader Power and Antenna Gain

In a complete RFID system, performance depends on the combination of:

  • RFID reader output power
  • Antenna gain
  • Cable loss
  • Tag sensitivity
  • Environmental conditions

The key metric that determines actual radiated energy is Effective Isotropic Radiated Power (EIRP).

EIRP = Reader Output Power (dBm) + Antenna Gain (dBi) − Cable Loss (dB)

For example:

  • Reader output power = 30 dBm
  • Antenna gain = 9 dBi
  • Cable loss = 2 dB
  • EIRP = 30 + 9 − 2 = 37 dBm

This means the system radiates RF energy equivalent to a theoretical isotropic antenna transmitting 37 dBm. Because EIRP combines both RFID reader power and antenna gain, it is often a better indicator of potential read range than either specification alone.

4. How RFID Reader Power Influences Read Range

The primary purpose of RFID reader power is to energize passive RFID tags. Passive tags have no internal battery and rely entirely on RF energy from the reader.

UHF RFID inlay sticker affixed to cardboard box ready for detection by RFID reader power signals.

When reader power increases:

  • More energy reaches the tag.
  • Tags can be activated at greater distances.
  • Weak or poorly positioned tags become easier to read.

However, increasing RFID reader power has practical limits. In real-world deployments, excessive power may cause:

  • Unwanted reads from neighboring zones
  • Cross reads between adjacent portals
  • Increased RF interference
  • Reduced location accuracy

For example, a warehouse portal designed to read cartons passing through a doorway may experience false reads from nearby storage racks if reader power is set too high. Therefore, RFID reader power should always be optimized rather than simply maximized.

5. Handheld RFID Readers vs Fixed RFID Systems

The role of RFID reader power and how it is optimized differs significantly between handheld devices and fixed installations. Understanding these differences helps in selecting the right hardware configuration for your specific environment.

The table below outlines the key technical and operational differences between the two systems:

Feature / MetricHandheld RFID ReadersFixed RFID Systems
Typical Max Output Power30 dBm to 33 dBmUp to 33 dBm (Highly adjustable)
Antenna Gain LevelModerate antenna gainVersatile (Commonly 6 dBi, 8 dBi, 9 dBi, 12 dBi)
Form Factor & SetupIntegrated reader, antenna, and battery in a single portable unitSeparate components: reader, external antennas, RF cables, and mounts
Core ApplicationsInventory counting, asset tracking, and maintenance inspectionsWarehouse portals, production lines, and vehicle identification
Power Optimization FocusManufacturers emphasize reader power as it directly drives mobile read performance.Reader power is only part of the equation; antenna selection and cable loss are equally critical.

6. Choosing Between 9 dBi and 12 dBi Antennas

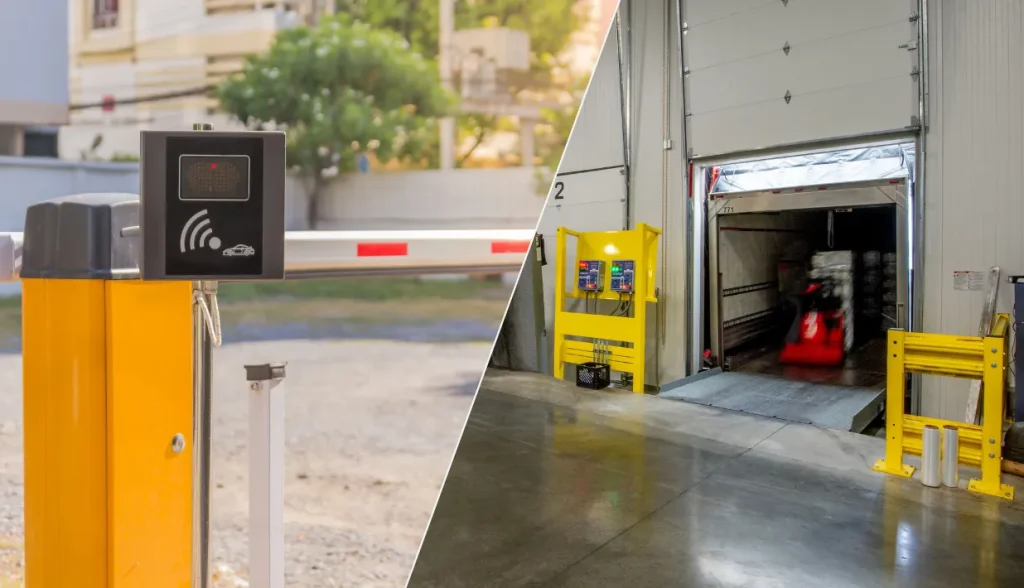

Vehicle barrier RFID reader and loading dock setup optimized with tailored RFID reader power ranges.

Many fixed RFID deployments involve deciding between 9 dBi and 12 dBi antennas. Rather than asking which antenna is “better,” system designers must evaluate the layout of the reading environment , as higher gain is not always the optimal choice.

  • 9 dBi Antennas (Wider Beam, Medium Range): These provide wider beam coverage and more forgiving installation angles. They are highly effective in shelving areas , warehouse portals, and general inventory zones where tags are spread across a broader area.
  • 12 dBi Antennas (Narrower Beam, Long Range): These feature a narrower beam width and more concentrated RF energy , enabling a longer potential read distance. They are the ideal choice for vehicle identification and specific long-range tracking applications.

Higher gain is not always better. If tags are located close to the antenna or spread across a wide area, excessive gain may create blind spots or increase the likelihood of unwanted reads. Successful RFID projects match antenna gain to the actual reading environment.

7. Factors Beyond RFID Reader Power

While adjusting RFID reader power is a direct way to influence performance, it does not operate in a vacuum. A truly optimized system must account for several critical environmental, hardware, and regulatory variables.

Bottled water production conveyor line monitored via calibrated RFID reader power for batch tracking.

7.1 Environmental & Hardware Factors

  • Tag Sensitivity & Orientation: Modern RFID chips vary significantly in their baseline sensitivity. High-performance chips can achieve extended read ranges without requiring higher reader power. Additionally, tags must align properly with the antenna’s polarization; poor orientation can dramatically slash read rates.
  • Physical Interference: RF energy is highly susceptible to the surrounding environment. Materials like metals reflect radio waves, while liquids and dense concrete absorb them. Often, strategically repositioning an antenna yields better results than simply turning up the reader’s power.
  • Cable Loss: High-quality, shorter RF cables are essential. Severe cable attenuation can easily waste a significant portion of your reader’s output power before the signal even reaches the antenna.

7.2 The Compliance Factor: Regulatory Limitations

Maximizing your read range must never come at the cost of legal compliance. Most countries strictly regulate RFID deployments by enforcing caps on frequency bands, output power, and—most importantly—EIRP limits.

Before finalizing your system configuration, ensure that your combined reader power, cable loss, and antenna gain stay strictly within local regulatory boundaries. Failing to do so can result in non-compliant operations and severe cross-read interference with neighboring equipment.

8. Best Practices for Optimizing RFID Reader Power

Warehouse management team reviewing RFID performance metrics tied to RFID reader power optimization.

To achieve the best performance, consider the following guidelines:

  1. Start with moderate power settings and gradually increase as needed.
  2. Match antenna gain to the application instead of automatically selecting the highest gain available.
  3. Measure actual read performance in the field.
  4. Minimize cable loss using high-quality RF cables.
  5. Select RFID tags designed for the operating environment.
  6. Verify compliance with local regulations.

In many projects, proper antenna selection and positioning deliver greater benefits than increasing RFID reader power.

9. Conclusion

Choosing the right RFID reader power, antenna gain, and hardware configuration is critical to achieving optimal read performance. RFIDTag provides a full range of RFID readers and antennas to help you build a reliable RFID system. Contact us today for expert advice and product recommendations.

Recommended Product

NFC tag dimensions comparison with colorful NFC tags on a laptop next to smartphone and tablet, illustrating common NFC tag form factors.

NFC Tag Dimensions vs Read Range: What’s the Relationship?

, , ,

Selecting the right Near Field Communication (NFC) hardware is a critical step in ensuring a seamless user experience. One of the most common questions for developers and product managers is how NFC tag dimensions impact the effective scanning distance. While the technology operates on simple electromagnetic principles, the interplay between size and performance is nuanced. This article explores the direct relationship between tag size and read range, helping you optimize your next project for the international market.

1. What Determines NFC Read Range?

Unlike UHF RFID, NFC operates at 13.56 MHz and relies on near-field magnetic coupling between the reader and the tag. This means communication happens only when the reader and tag are physically close to each other.

NFC reader module with a keychain tag, demonstrating how NFC tag dimensions interact with reader hardware for contactless communication.

Several factors affect NFC read range:

  • Antenna size
  • Antenna design
  • NFC chip sensitivity
  • Reader power
  • Metal interference
  • Environmental conditions
  • Tag orientation

Among these factors, antenna size is one of the most important. Since antenna size is closely related to NFC tag dimensions, the overall dimensions of the tag have a major impact on performance.

2. Understanding the Basics of NFC Tag Dimensions

To understand the relationship between size and range, we must first distinguish between the physical size of the tag and the size of its internal antenna. An NFC tag typically consists of an IC (Integrated Circuit) and an antenna, often housed on a substrate like PET or paper.

Close-up view of an NFC tag’s internal antenna, revealing how NFC tag dimensions affect the copper coil and microchip design.

When we discuss NFC tag dimensions, we are often referring to the outer measurements of the sticker or card. However, the true driver of performance is the antenna size. A high-quality tag will maximize the antenna surface area within the given physical footprint. For example:

  • Wet Inlays: These are the functional part of the tag, where the antenna is visible.
  • White Labels: These add a paper or plastic face, often resulting in a slightly larger physical size than the antenna itself.
  • Encapsulated Tags: Disc tags or keyfobs have thicker housing, which can add bulk without increasing the antenna’s reach.

3. How Size Affects the Magnetic Field

NFC operates on the principle of inductive coupling at a frequency of 13.56 MHz. The reader (such as a smartphone) creates a magnetic field. When an NFC tag enters this field, the antenna harvests energy through electromagnetic induction to power the chip and transmit data.

NFC-enabled payment card and smartphone, showing how NFC tag dimensions in cards support contactless payment transactions.

The efficiency of this energy harvest is directly proportional to the antenna’s surface area. A larger antenna acts like a larger “net,” catching more magnetic flux from the reader. Consequently:

  • Increased Flux Capture: Larger NFC tag dimensions allow the antenna to capture more energy at a greater distance.
  • Mutual Inductance: The coupling between the reader and the tag is strongest when their antennas are of similar size and alignment.
  • Power Threshold: Every NFC chip has a minimum power requirement. Larger antennas reach this threshold further away from the reader than smaller ones.

4. Small vs. Large: Comparing Common NFC Tag Dimensions

The market offers a vast array of sizes, each suited for different use cases. Understanding the trade-offs is essential for product design.

Split image showing NFC tag applications in jewelry retail, food packaging, and access control, highlighting diverse NFC tag dimensions for different use cases.

4.1 Small Tags (Under 20mm)

Small tags are popular for discreet integration into jewelry, medical devices, or small consumer electronics. However, they come with significant performance limitations.

  • Read Range: Typically 5mm to 15mm.
  • User Experience: Requires very precise placement.
  • Best For: Applications where space is extremely limited and the user is expected to touch the device directly.

4.2 Medium Tags (25mm to 40mm)

This is the “goldilocks” zone for most commercial applications. A 30mm round tag is the industry standard for marketing stickers and product packaging.

  • Read Range: Typically 20mm to 40mm.
  • User Experience: Offers a reliable “tap and go” feel. Most smartphones can easily detect these tags without requiring surgical precision.
  • Best For: Retail, smart packaging, and interactive posters.

4.3 Large Tags (Credit Card Size and Above)

When maximum range is required, larger NFC tag dimensions are the way to go. These are often used in corporate ID badges or smart posters.

  • Read Range: Can reach 50mm to 70mm or more depending on the reader’s power.
  • User Experience: Extremely forgiving. The tag can often be scanned even before it physically touches the reader.
  • Best For: Access control, transit cards, and large-scale advertising.

5. Factors That Complicate the Size-Range Relationship

While “bigger is generally better,” the relationship is not always linear. Several technical factors can influence how NFC tag dimensions translate into real-world performance.

Slim rectangular NFC tag placed on a laptop, demonstrating compact NFC tag dimensions for asset tracking and device tagging.

5.1 The Reader’s Antenna Size

Maximum efficiency occurs when the tag antenna matches the reader antenna. Most modern smartphones have NFC antennas located near the top edge or around the camera module. If a tag is significantly larger than the phone’s antenna, the magnetic field may not be uniform across the entire tag, leading to diminishing returns in range.

5.2 Chip Sensitivity and Power Requirements

Not all NFC chips are created equal. Newer generations, like the NXP NTAG213 or ICODE series, are designed for higher sensitivity. A high-sensitivity chip on a medium-sized antenna might outperform a low-sensitivity chip on a larger antenna. Additionally, chips with complex features like AES encryption require more power, which naturally reduces their effective read range.

5.3 Environmental Interference

Metal is the enemy of NFC. If a tag is placed on a metal surface, the magnetic field is “shorted out,” rendering the tag unreadable regardless of its size. In these cases, you must use “on-metal” tags, which include a ferrite shielding layer. These layers add thickness and can slightly alter the optimal NFC tag dimensions for the intended range.

6. Practical Guide: Choosing the Right Dimensions for Your Application

To select the ideal NFC tag dimensions, follow this decision-making framework:

  • Identify Environment: Will they be scanning in a stable environment (like a desk) or on the move (like a bus stop)? For “on-the-go” scanning, prioritize larger antennas (35mm+).
  • Determine the Housing Material: If the tag is buried inside plastic or glass, the material will attenuate the signal. You may need to increase the antenna size to compensate for the loss.
  • Balance Aesthetics and Function: While a 50mm sticker offers great range, it might overwhelm your product’s design. A 30mm tag often provides the best balance of visibility and performance.
ApplicationRecommended SizeExpected Range
Jewelry/Wearables10mm – 15mm0 – 1 cm
Product Packaging25mm – 30mm2 – 4 cm
Smart Posters40mm – 50mm4 – 6 cm
Access Control Cards85mm x 54mm5 – 8 cm

7. Antenna Design Matters as Much as Size

Although NFC tag dimensions strongly influence read range, dimensions alone do not determine performance.

Close-up of multiple NFC tags with different antenna designs, showing how NFC tag dimensions and antenna layout impact read performance.

Two tags with identical sizes may perform differently because of:

  • Antenna geometry
  • Coil turns
  • Copper quality
  • Chip sensitivity
  • Matching circuit optimization

A well-designed 20 mm NFC tag can sometimes outperform a poorly designed 25 mm tag. This is why professional NFC manufacturers focus not only on dimensions but also on antenna engineering and tuning.

8. Conclusion

The relationship between NFC tag dimensions and read range is one of the most important considerations in NFC system design. In general, larger NFC tag dimensions allow for larger antennas, stronger magnetic coupling, and more reliable scanning performance. However, dimensions alone are not enough. Antenna design, materials, installation surface, and smartphone compatibility all influence real-world results.

At RFIDTag, we provide customized NFC tags for packaging, industrial tracking, smart marketing, and IoT applications. Whether you need small NFC tags or high-performance anti-metal solutions, our team can help you select the right dimensions for your project.

FAQs

1. Does a larger NFC tag always have a longer read range?

Generally, yes. Larger NFC tag dimensions allow for larger antennas, which usually improve magnetic coupling and scanning distance. However, antenna design and chip sensitivity also affect performance.

2. What is the smallest workable NFC tag size?

Some ultra-small NFC tags can be as small as 8–10 mm. However, very small tags typically have extremely short read ranges and may require precise phone positioning.

3. What is the typical read range of an NFC tag?

Most NFC tags are readable within 1–5 cm, depending on the NFC tag dimensions, antenna design, smartphone model, and surrounding materials.

4. Which NFC tag dimensions are best for smartphones?

For reliable smartphone interaction, NFC tags around 25–30 mm generally provide stable performance across most devices.

Recommended Product

HF NFC FPCB Tag NXP NTAG 213 on flexible PCB

NXP NTAG® 213 NFC FPCB Tag

The HF NFC FPCB Tag NXP NTAG® 213 integrates advanced NFC technology with a flexible printed circuit board design, offering heat and pressure resistance ideal for re-encapsulation. Equipped with NTAG® 213 chip, it supports anti-collision and 32-bit password protection for enhanced security. Its compact size and reliable performance make it perfect for product authentication, dynamic marketing, and real-time customer engagement.

HF NFC Mobile Tag PVC NXP NTAG 213 Front View

On-Metal NFC PVC Mobile Tag NXP NTAG® 213

This Ø30mm NXP NTAG® 213 NFC on-metal mobile tag is specifically crafted for use on metal surfaces. It boasts the advanced NXP NTAG® 213 chip and adheres to ISO/IEC 14443-A standards, ensuring rapid and reliable data transmission.

Designed with anti-interference technology and a weather-resistant adhesive, this NFC tag offers exceptional performance on phone surfaces. This tag is ideal for asset management, automating smart homes, enhancing retail marketing, managing access control, sharing digital business cards, swiftly reaching contacts or applications, ensuring personal safety, and coordinating smart meeting schedules.

NFC FPC Tag ST Microelectronics ST25TV02KC

NFC FPC Tag ST Microelectronics® ST25TV02KC

The NFC FPC Tag is a flexible NFC-based identification solution designed for high-performance identification and data exchange. Made with FPC material, it provides durability and flexibility, making it suitable for curved surfaces, compact devices, and industrial smart applications requiring reliable integration. Designed for embedded installation and further product integration, it is commonly used in OEM and space-constrained applications.

Powered by the ST25TV02KC chip and compliant with ISO/IEC 15693 and NFC Forum Type 5 standards, it enables reliable contactless identification, secure data communication, and standard interoperability.

Factors influencing RFID read range and methods to enhance RFID distance performance

Ultimate Guide to RFID Distance: What Will Affect it and How to Improve it?

, , , , , 0

In today’s fast-paced world, efficiency and accuracy are paramount for businesses across all sectors. From streamlining logistics in vast warehouses to enhancing patient safety in healthcare, RFID offers unparalleled capabilities for automated identification and data capture. But what’s the read distance of a typical RFID tag?

What is RFID Technology?

Radio Frequency Identification (RFID) is a cutting-edge technology that leverages electromagnetic fields to automatically identify and track tags attached to objects. You can click the video below to know more about RFID technology.

Why is RFID Distance Important for your Operation?

RFID read range—the distance an RFID system can successfully read a tag—directly determines how well the system performs. It has a direct impact on the speed, precision, and scalability of operations. A greater read range minimizes manual labor, speeds up workflows, and guarantees timely and accurate data for improved decision-making.

In the logistics sector, an extended read distance enables the scanning of entire pallets or truckloads in an instant, thereby streamlining processes such as shipping, receiving, and inventory checks, resulting in reduced labor costs and increased throughput. Conversely, shorter ranges may necessitate additional readers or manual scanning, which can hinder automation.

For asset tracking in expansive facilities, a longer read range enhances visibility, cuts down search time, and helps prevent equipment loss. In the retail environment, it facilitates quicker inventory audits, diminishes shrinkage, and improves product availability.

Ultimately, optimizing RFID distance is essential for maximizing return on investment (ROI). A restricted range can undermine system performance, while an appropriately calibrated read range can unleash the full capabilities of RFID—enhancing efficiency and providing a competitive edge.

What Will Affect RFID Distance?

Let’s delve into the primary factors that impact RFID distance.

Frequency

The operating frequency of an RFID system is one of the most fundamental determinants of its read range and overall performance characteristics. Different frequency bands behave distinctly in various environments and offer different trade-offs between read distance, data transfer rates, and sensitivity to interference. Choosing the right frequency band is the first critical step in optimizing RFID distance for a specific application.

Environmental Condition

The environment in which an RFID system operates profoundly influences its read distance and overall performance.

Metal objects are notorious for interfering with RFID signals, particularly at higher frequencies like UHF. Metals can reflect radio waves, creating signal nulls or hot spots, and can also detune RFID tag antennas, effectively reducing their efficiency.

High temperatures can sometimes alter the electrical properties of tag components, potentially reducing their efficiency. High humidity or condensation can lead to signal absorption or short-circuiting of tag antennas, especially for tags not designed for harsh environments.

Power supply

RFID tags are categorized into two types: passive and active. Passive tags obtain energy from the signal from the reader. Essentially, for effective operation, the tag and reader need to be close to each other. On the other hand, active tags are equipped with batteries that enable them to send data from distances of hundreds of meters away from the reader.

Antenna Design

Antenna design is a pivotal factor in determining the read distance and overall performance of an RFID system. Their design, including shape, size, gain, and polarization, directly impacts how effectively energy is coupled between the reader and the tag.

Tag Position and Orientation

When the label is directed towards the antenna and there are no dielectric barriers in the way, the signal transmission improves, resulting in a greater reading distance. Thus, it is crucial to strategically position tags and antennas in practical applications.

You can also click on the video below to learn more about factors affecting RFID distance.

Different RFID Tags with Different Reading Ranges in various applications

RFID technology encompasses a diverse range of tag types, each designed to operate within specific frequency bands and optimized for particular applications.

Active RFID in Real-Time Location Systems

Active RFID tags are capable of sending signals across distances exceeding 100 meters. These active RFID tags consistently send out signals to readers (or receivers) across a facility. This capability collects and uses real-time tracking and location information for a wide range of applications.

Passive RFID in Inventory Management

While their design limits their read range, typically up to 15m, it also makes them more cost-effective, smaller, and virtually maintenance-free. Their ability to read tag quickly and simultaneously allows for rapid inventory counts, reducing manual labor and improving accuracy. Similarly, in warehouses and distribution centers, passive RFID enables efficient tracking of goods as they move through the supply chain, facilitating faster receiving, picking, and shipping processes.

RFID technology streamlining inventory management inside a busy warehouse environment

LF RFID in Animal Identification

Low Frequency (LF) RFID systems operate in the 125-134 kHz range and are characterized by their very short read range, typically just a few centimeters (e.g., 1-10 cm). While this limited range might seem like a disadvantage, it is precisely what makes LF RFID highly effective and reliable in specific applications, particularly animal identification. LF signals are less susceptible to interference from water and metal, which are common elements in agricultural and veterinary environments.

HF RFID in Access Control

High Frequency (HF) RFID systems operate at 13.56 MHz and offer a read range that falls between LF and UHF, typically from a few centimeters up to about 1 meter. With their moderate read range and enhanced security features, makes HF RFID a dominant technology in access control systems.

The short to medium read range ensures the security of access control. Beyond physical access, HF RFID is also suitable for public transportation for ticketing, in libraries for book management, and payment systems for contactless transactions.

UHF RFID in Asset Tracking

Ultra-High Frequency (UHF) RFID systems operate between 860 and 960 MHz, offering the longest read ranges in passive RFID technology, exceeding 10 to 15 meters. Their capability to read multiple items at once makes them ideal for tracking high-value assets in logistics, manufacturing, and IT.

Although UHF signals can be influenced by metal and water, specialized tags and innovative designs ensure reliable performance and full asset visibility.

Smart inventory management using RFID LED tags for precise asset identification

How to Improve RFID Distance for your Business?

Optimizing RFID read distance is paramount for maximizing the efficiency and effectiveness of your RFID system. By carefully considering hardware choices, system configuration, and environmental mitigation, businesses can significantly improve their RFID distance.

Choose a Suitable RFID Chip and Reader

  • Low-Frequency (LF) Chips, such as the EM4305, provide excellent penetration capabilities, even through metal barriers. The read range generally reaches up to 1 meter. This category includes well-known chips like EM4102, T5577, and the HITAG series.
  • High-Frequency (HF) Chips, including MIFARE 1K/4K and the NTAG series, have a read range of 2–10 cm. These chips are ideal for applications like access control, public transportation, mobile payments, and smart labeling.
  • Ultra-High-Frequency (UHF) Chips, such as the Impinj Monza and Alien Higgs, provide impressive long-range reading capabilities—ranging from 5 to over 15 meters—thanks to their high-gain antennas. They are particularly ideal for logistics, inventory management, and asset tracking.

Optimize Antenna Placement

The strategic placement and configuration of RFID antennas are vital for achieving optimal read distance and coverage.

The location of the reader antenna needs careful planning to ensure the RFID field covers the desired read zone effectively. This involves considering the physical layout of the environment, potential obstructions, and the direction of tag movement. Experimentation and site surveys are often necessary to determine the ideal placement that maximizes coverage and minimizes dead spots.

Use Reflective Materials and Shielding Tech to Minimize Interference

Utilizing RF-reflective materials like aluminum foil can significantly improve the visibility of tags when placed on absorbent surfaces. In settings where interference is prevalent, implementing RF shielding can reduce signal leakage or disruption from nearby electronic devices.

Conclusion

The effectiveness of an RFID system, and by extension, its ability to deliver tangible business benefits, hinges critically on a comprehensive understanding and strategic optimization of its read range.

If seeking to harness the full potential of RFID technology, you should focus on correct planning, informed hardware choice, and rigorous testing.

An optimized RFID system translates directly into fewer errors in inventory management, faster workflows in logistics, and the acquisition of richer, more accurate data for strategic decision-making. In an era where data-driven insights and streamlined processes are key differentiators, mastering RFID distance is not just a technical consideration—it is a strategic imperative for sustained success.

FAQs

Can RFID work around metal or water?

RFID can work around metal or water, but its performance is significantly affected, especially at higher frequencies like UHF. Metal can reflect RFID signals, causing interference and reducing read range, while water absorbs radio waves, leading to signal attenuation. For HF and UHF systems, specialized on-metal tags or liquid-tolerant tags are designed to mitigate these effects, and careful antenna placement and system design are crucial to ensure reliable operation in such challenging environments.

Do higher-cost RFID tags always have longer range?

Not necessarily. While active RFID tags, which are generally higher in cost due to their integrated battery and more complex electronics, do offer significantly longer read ranges, the cost of passive RFID tags is not directly related to their read range. The read range of a passive tag is primarily determined by its frequency, antenna design, and chip sensitivity, rather than just its price. A higher-cost passive tag might offer better performance in challenging environments (e.g., on-metal tags) or have advanced features, but it doesn’t automatically guarantee a longer read range than a less expensive tag designed for optimal range in a different application.

RFID tracking of inventory in a warehouse environment

What’s the Read Range of RFID?

, , , , 0

In the field of RFID (Radio Frequency Identification) technology, understanding the range of RFID tags is crucial for selecting the right system that meets your business needs. Whether you’re managing inventory, tracking assets, or controlling access, knowing the reading distance of an RFID tag is key to finding the most effective solution.

What’s the Read Range of RFID Tags?

The read range of an RFID tag is the maximum distance at which an RFID reader can communicate with it. This range varies based on several factors and is crucial for RFID implementation. Active tags, which emit signals, can read over 100 m. While passive tags have a shorter range. Low-frequency and high-frequency tags usually support reading distances of up to 1 meter, while UHF tags offer ranges extending to 10 meters.

Why does understanding the Range of RFID Matter for Business?

Understanding the read range of RFID tags is not merely a technical detail; it is a strategic imperative for businesses. Ultimately, a thorough understanding of RFID read range enables businesses to design robust, scalable, and highly efficient RFID solutions that directly contribute to operational excellence and a competitive advantage.

4 Key Factors Affecting the Range of RFID

Frequency

The operating frequency of an RFID system is perhaps the most fundamental determinant of its read range. Different frequency bands behave distinctly in various environments. Low Frequency (LF) RFID (around 125-134 kHz) offers very short read ranges, typically a few centimeters.

High Frequency (HF) RFID (13.56 MHz) provides slightly longer ranges, up to 1 meter. Ultra-High Frequency (UHF) RFID (860-960 MHz) offers the longest read ranges, often up to 10 meters. The choice of frequency must align with the specific application and environmental conditions to achieve optimal read performance.

Environmental Interference

Common sources of interference include metals, liquids, and other electromagnetic fields. Metals can reflect or absorb radio waves, creating dead spots or reducing signal strength. Liquids, including water in human bodies or products, can absorb RFID signals, effectively shortening the read range.

Antenna Design and Placement

The antenna plays a crucial role in transmitting and receiving RFID signals, directly influencing the system’s read range and coverage area. Antenna design, including its gain, polarization (linear or circular), and beam width, dictates how effectively it can communicate with tags.

A high-gain antenna can extend the read range in a specific direction, while a wider beam width might be suitable for covering a larger area. Proper placement of antennas is equally vital. Obstructions, such as walls, shelves, or even dense product stacks, can block or weaken signals.

Tag Size, Angle, Placement, and Orientation

The physical characteristics and positioning of the RFID tag itself are critical determinants of its read range. Larger tags generally have larger antennas, which can capture more energy from the reader’s signal, leading to longer read ranges.

The tag’s angle and orientation relative to the reader’s antenna strongly influence performance. RFID signals exhibit polarization, and effective communication occurs when the tag antenna’s polarization aligns with the reader antenna’s polarization. Proper placement of the asset, ensuring minimal obstruction and optimal orientation, is essential.

4 Ways to Maximize the Read Range of RFID

Choose the Suitable RFID Tags based on your Application Requirements

The type of RFID tag you select is paramount to achieving optimal read range. Carefully evaluate your specific needs, including the environment, the items, and the reading distance, to choose tags that are inherently capable of meeting your range objectives. A well-matched tag to its application is the first step towards maximizing read range.

Use Unblocking Mounting Materials to Avoid Interference

To maximize read range, it’s crucial to minimize interference from blocking or absorbing materials. If metal is unavoidable, utilize special on-metal tags with an insulating layer or standoff to mitigate this effect. Similarly, water and other liquids absorb RFID signals, so consider the proximity of liquids to your tags and readers. When designing your system, identify potential sources of interference and choose mounting solutions and tag types that are resilient to these challenges.

The use of non-interfering materials around the tag and reader can ensure a clear path for radio waves, thereby extending the effective read range.

Optimize RFID System Layout

The physical layout and configuration of your RFID system components—readers, antennas, and tags—are critical for maximizing read range and coverage. Proper antenna placement is key; ensure antennas can provide optimal signal coverage across the desired read zone, avoiding obstructions like walls, shelves, or dense product stacks. A more appropriate system layout leads to reliable and longer read ranges.

Improve Antenna Design

The antenna is the primary component responsible for transmitting and receiving radio frequency energy, making its design and characteristics fundamental to achieving maximum read range. Investing in high-performance antennas with appropriate gain and polarization can significantly extend the communication distance. High-gain antennas focus the radio energy in a specific direction, allowing for longer reads in that particular zone.

Practical Applications of RFID Tags with Different Ranges

The versatility of RFID technology is evident in its wide range of applications.

Short Range (0-10 cm)

Short-range RFID applications are ideal for proximity and high security, often involving direct contact or very near-field communication.

Access Control

Users simply tap or wave their card near a reader to gain entry to buildings, rooms, or restricted areas.
The short read range ensures that only authorized individuals close can trigger the access, enhance security, and prevent unauthorized entry from a distance. This precise control is vital for sensitive environments like data centers, laboratories, or corporate offices, where granular access management is essential.

Contactless Payment

The short read range is a critical security feature, ensuring that secure and efficient payments happen when the device is close to the reader. This convenience and security have made contactless payment a widely adopted technology in retail and public transport.

Mid-Range (Up to 1m)

Mid-range RFID applications bridge the gap between very close-proximity interactions and broader area tracking. This range offers a balance of convenience and control, suitable for various item-level tracking and management scenarios.

Ticketing

Users can simply tap their RFID ticket or wristband at a turnstile or entry point, allowing for quick and efficient validation.
The mid-range capability means users don’t need to precisely align their ticket, speeding up entry and reducing queues. This enhances the user experience while providing event organizers or transport authorities with real-time data on attendance and usage.

RFID-enabled event entry system ensuring secure, fraud-free access control

Retail Inventory Tracking

Handheld RFID readers can quickly scan multiple items within a meter’s radius, enabling rapid inventory counts, stock replenishment, and identification of misplaced items.
This significantly improves inventory accuracy, reduces stockouts, and streamlines the process of getting products onto the sales floor, leading to better sales and customer satisfaction.

RFID inventory management in warehouse setting

Event Management

RFID wristbands or badges are popular in event management for attendee tracking, cashless payments, and access control within different zones of an event.
The mid-range capability allows for the smooth flow of attendees through checkpoints and facilitates interactive experiences, making events more engaging and efficient.

Long Range Passive RFID (Up to 10m)

Long-range passive RFID systems are ideal for applications requiring tracking over significant distances without the need for battery-powered tags. This capability is invaluable for large-scale logistics, asset management, and supply chain visibility.

Long-Range Asset Tracking

For tracking high-value assets across large facilities, warehouses, or outdoor yards, long-range passive RFID, like RFID on-metal tags, is an ideal solution. You can read tags on equipment, vehicles, or containers from several meters away by fixed or handheld readers.
This provides real-time location data, improves asset utilization, reduces loss, and streamlines auditing processes, offering significant operational efficiencies for businesses with extensive asset portfolios.

Supply Chain Management

In complex supply chains, long-range RFID, like RFID cable tie tags, enables automated tracking of goods as they move from manufacturing to distribution centers and retail stores.
This helps in optimizing logistics, reducing shipping errors, improving delivery times, and enhancing overall supply chain transparency. Ultimately, it leads to more efficient and responsive operations.

Waste Management and Smart Recycling

RFID recyclable cups now play an active role in waste management and smart recycling programs. This data helps optimize collection routes, ensure compliance with recycling programs, and provide insights for urban planning, leading to more efficient and sustainable waste management practices.

Conclusion

The read range of RFID tags is far more than a technical specification; it is a critical determinant of an RFID system’s success and its ability to deliver tangible business value. By understanding the multifaceted factors that influence read range—from frequency and environmental conditions to antenna design and tag characteristics—businesses can make informed decisions that optimize their RFID deployments.

FAQs

Which RFID tag is best for long range?

For long-range applications, Ultra-High Frequency (UHF) passive RFID tags are generally the best choice due to their ability to achieve read ranges of up to 10 meters or more.

What’s the best way to test the RFID range before full deployment?

The best way to test the RFID range before full deployment is to conduct thorough site surveys and pilot programs in your actual operating environment. Moreover, this involves testing various tag types, reader placements, and antenna configurations under real-world conditions, including potential interference sources.

Can I read multiple RFID tags simultaneously at long distances?

Yes, one of the significant advantages of UHF RFID technology is its ability to read multiple tags simultaneously, even at long distances. This capability, known as “bulk reading” or “anti-collision,” allows an RFID reader to identify and process hundreds of tags within its read field almost instantaneously, greatly enhancing efficiency in applications like inventory management and asset tracking.

en_USEN
en_USEN es_ESES jaJA
